Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
| مكان المنشأ | الصين |
|---|---|
| اسم العلامة التجارية | DIXUN |
| إصدار الشهادات | CE & ISO 9001:2015 |
| رقم الموديل | دي اكس-63 تي |
| الحد الأدنى لكمية | مجموعة واحدة |
| تفاصيل التغليف | سيتم تحميل قطع الغيار وخزانة التحكم في صندوق خشبي. الآلة الرئيسية هي التعبئة العارية. تحتاج إلى حاوي |
| وقت التسليم | 30 يوم عمل |
| القدرة على العرض | 5 مجموعات شهريا |
تفاصيل المنتج
| اسم المنتج | آلة الأسلاك الشائكة الشائكة كونسرتينا | تحميل الوزن الصلب لجهاز التفكيك | 2T |
|---|---|---|---|
| محرك آلة التفكيك | 1.5 كيلو واط | محرك آلة لكمة | 5.5 كيلو واط |
| وزن آلة لكمة | 3.9 طن | عرض لفائف الصلب | 154mm |
| سمك لفائف الصلب | 0.5 ملم أو 0.4 ملم | عدد الشرائط | 11 شريط |
| الوزن الإجمالي | 9t | مطلوب العمل | شخص واحد |
| إبراز | concertina razor barbed wire machine,BTO-22 razor wire machine,11 strips barbed wire machine |
||
منتوج وصف
Prison Defence BTO-22 11 strips Concertina Razor Barbed Wire Machine
Introduction of Concertina Razor Barbed Wire Machine
Concertina Razor Wire with Various Blade Types Making Machine,.The razor barbed wire machine, also known as the razor barbed wire machine is a special machine for producing razor barbed wire.
Advantages of Concertina Razor Barbed Wire Machine
1. High speed punching machine. high efficiency and easy operation.
2. Automatic lubricating system to save operation time and avoid some parts worn because of short of lubrication oil.
3. Step motor feeding material to make material feeding more precise.
4. PLC control to make operation easy and machine run stable.
5. Some spare parts for free
Working principle of Concertina Razor Barbed Wire Machine
Razor barbed wire machine consists of razor strip making machine and coil machine. Razor strip making machine cuts steel strip into different razor shapes according to different moulds.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
Technical Parameters of Concertina Razor Barbed Wire Machine
| Punch machine from Yangli brand Best quality | Coiling machine nverter controlled | |
| Production speed | 220-280m/h | 800kg at 8 hours |
| Raw material | Galvanized steel sheet or Stainless steel | Galvanized wire |
| Thickness | 0.5mm or 0.4mm | 2.5mm |
| Motor | 5.5kw | 1.5kw |
| Voltage | 220V,380V,415V,440V | 220V,380V,415V,440V |
| Weight | 3.9T | 400kg |
| Dimension | 1800x1600x2650mm | 1000x550x1000mm |
| Punch pressure | 63T | |
| Feeding material | By stepping motor |
Applications of Concertina Razor Barbed Wire
Barbed wire with blades, also known as blade barbed wire or blade barrier mesh, is a new type of security fencing. It features excellent qualities such as aesthetic appearance, cost-effectiveness, high effectiveness in deterrence, and easy installation. As a result, it is widely used in industrial and mining enterprises, gardens and residential complexes, border outposts, prisons, detention centers, government buildings, and other national security facilities across many countries.

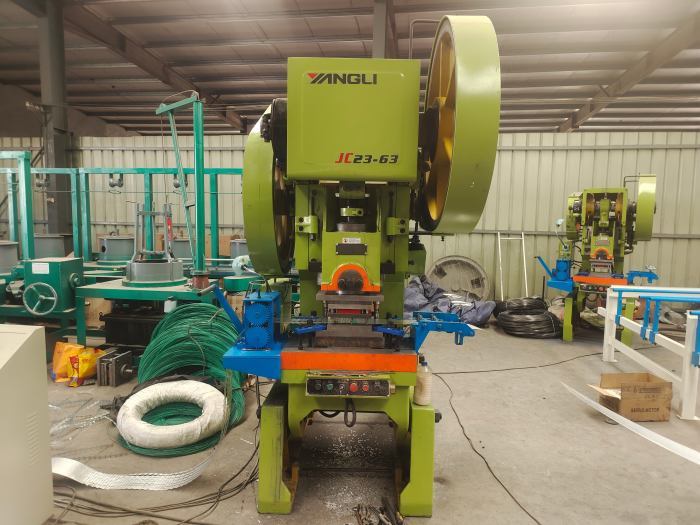

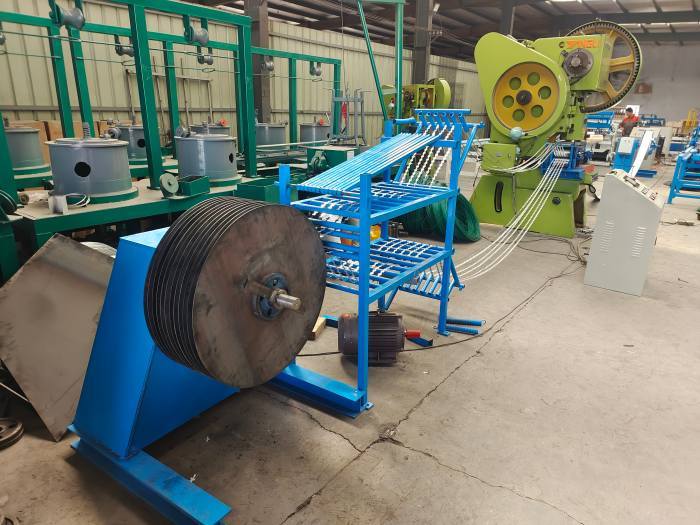

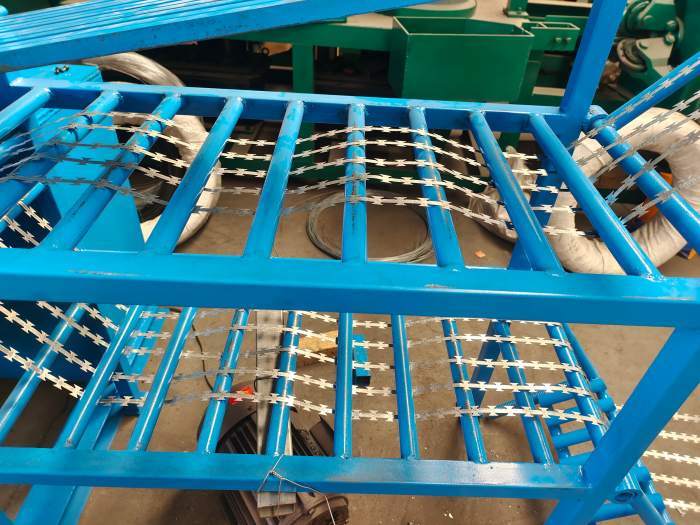

Photos of Conceretina Razor Barbed Wire Machine
